- SmartVision with direct fieldbus connection
-
- Realtime Image Acquisition
-
- Easy Image Preprocessin
-
- Image Processing without Programming
-
- Wide Smart Processing
-
- Speed AutoAdjust
-
- Semiautomatic Scaling
|
|
![Fieldbus connection for EtherCAT, ProfiNET and EthernetIP](../images/smart_vision_control_system.png) |
|

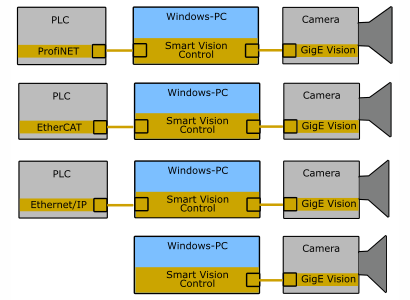

- Fieldbus connection for
-
- ProfiNET
-
- EtherCAT
-
- Ethernet/IP
|
|

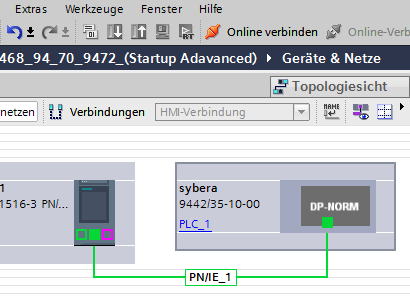

Use with
- Siemens TIA-Portal
- Rockwell Studio 5000
- Beckhoff TwinCAT
...
|
![Use with TIA-Portal](../images/ProfiNET_tia.png) |
![Smart Image Processing](../images/smart_processing.png) |
|

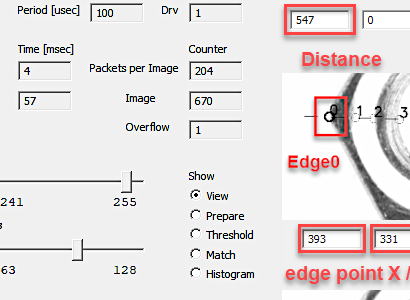

Smart Image Processing:
- Center
- Orientation
- Distance
- Contour
- Match
- Edges |
|
Realtime Image Processing
|
![Realtime Image Processing](../images/gev_management.jpg) |
![GenICAM Configurator with Diagnostics](../images/gev_config.jpg) |
|
GenICAM Configurator with Diagnostics |
Typical Applications |
|
- - Pick & Place
- - Assembly
- - Inspections
- - Quality Assurance
- - Pachaging
- - Measuring
- - Soldering
|
![Smart Vision Applications](../images/vision_sample.png) |
|
Smart Vision Control System
|
The smart vision solution with direct fieldbus connection does not require any additional hardware -
just a Windows PC and a GigE Vision camera (e.g. Basler). Parameterization instead of programming:
simple image presetting and image processing without programming knowledge.
This new product from Sybera combines two areas: the fieldbus connection (ProfiNET, EtherCAT or Ethernet/IP)
to the PLC and image capture and image processing. This means that tasks such as pick & place, measurement
technology and quality assurance can be carried out with minimal effort. The camera integration is also easy
and is done using the additional software VisionGen.
In addition to the camera itself, the lens and the lighting, image pre-processing plays a crucial role
in the quality of the results. Typical features of image preprocessing are brightness, contrast,
sharpness and threshold.
A total of ten image processing elements (items) are available, which can be freely combined and transmit
the result directly to the PLC. The available image processing elements are: center determination,
angle determination, distance measurement, contour measurement, corner position determination and
pattern determination.
|
|
