Realtime Cycles upto 1 msec
Realtime Frame Handling
TCP Management
Low Level Interface
ModTCP Macros
|
|
 |
|
Realtime TCP State Management |
|
Typical Applications |
| |
- Assembly
- Packaging
- Embossing Technique
- Service
- Meassurement Applications
- Welding
|
 |
|
ModTCP Master Library |
|
As an extension of the realtime Ethernet spectrum SYBERA has developed a Realtime Master for the Modbus TCP. The
Realtime Master allows precise control of Modbus telegrams via the TCP/IP communication. The master/device relationship
allows a deterministic handshaking within closed networks. The MODBus TCP realtime communication prefaces a defined
Master/Device-relation. With the realtime MODBus TCP master the requirement of a separate controller-hardware falls. The
MODBus TCP control can be realized simply by the PC hardware and standard Ethernet adapters.
|
|
ModTCP Master Technology |
|

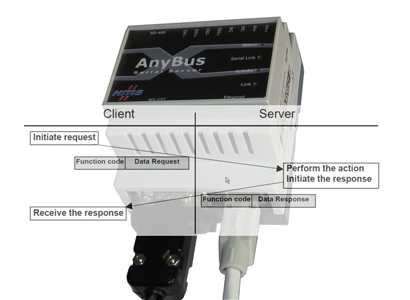

The Modbus TCP communication principle is based characteristically on a deterministic data-exchange. With a specially
developed TCP realtime state machine, the TCP messages are controlled. Here, both the controlled TCP protocol enabling
(Connect) and the TCP protocol disabling (Disconnect) is implemented at real-time. The realtime master allows a star
topology network Modbus participants, the addressing is determined by the MAC and IP address of the switching modules.
The development of the master library is comfortably aligned to the MODBUS telegrams.
|
